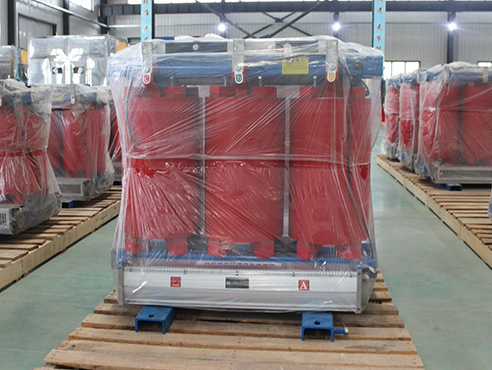

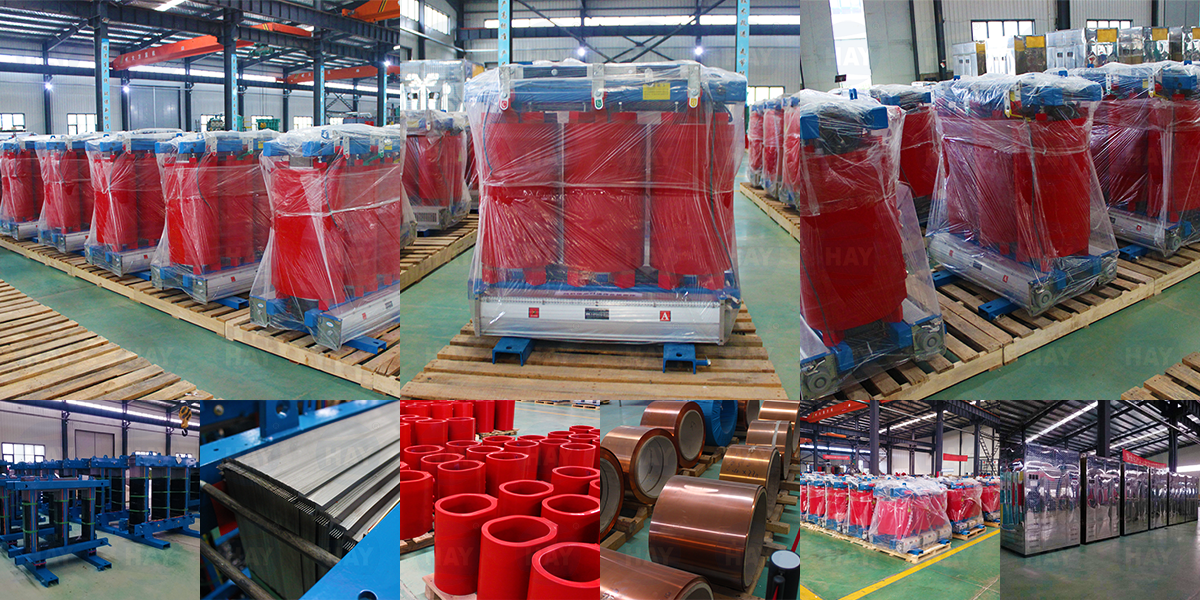

SCB10干式變壓器（選型表）由臺州力威電源科技有限公司提供，SCB10型環氧樹脂澆注三相干式變壓器具有安全，阻燃防火，無污染，可直接安裝在負荷中心。免維護、安裝簡便。防潮性能好，停運后不經預干燥即可投入運行。損耗低，局部放電量低、噪音小、強迫風冷條件下可以120% 額定負載運行。自己備有完善的溫度保護控制系統，為變壓器安全運行提供可靠保障。該產品的可靠性指標已經達到國內先進水平。

SCB10 epoxy resin cast three-phase dry-type transformer has safety, fire-retardant and fire-proof, no pollution, and can be directly installed in the load center. Maintenance free and easy to install. It has good moisture-proof performance and can be put into operation without pre-drying after shutdown. Low loss, low partial discharge, low noise, and 120% rated load operation under forced air cooling. It has a complete temperature protection control system to provide reliable protection for the safe operation of the transformer. The reliability index of this product has reached the domestic advanced level.

1、線圈采用銅導線纏繞或箔繞，以玻璃纖維增強，環氧樹脂不加填料真空干燥脫氣脫濕整體澆注，機械強度高，抗短路，耐沖擊能力強。

2、高壓繞組首末端及中間分接抽頭采用銅嵌件預埋結構，鋼性好，便于調檔，美觀整齊。

3、鐵芯采用優質晶粒取向冷軋硅鋼片疊制，45度全斜多階梯接縫。表面用樹脂絕緣涂層覆蓋，耐潮濕，防銹，降噪。

4、鐵芯、夾件和線圈之間采用彈性件夾緊，使線圈處于穩定壓緊狀態，以降低噪音。

5、變壓器按自冷設計，整體澆注的高(低)壓線圈筒壁內部預留有縱向通風道，可配備強迫風冷裝置(冷卻風機)，采用強迫風冷裝置后，可提高輸出容量20%。

6、配有溫控器，在低壓線圈頂部的預埋孔內放置鉑電阻(Pt100)。以監測變壓器繞組溫升，自動啟停冷卻風機并設有故障報警、超溫報警和超溫跳閘功能，為干式變壓器提供可靠的過載保護裝置，從而提高干式變壓器運行的安全性。

1. The coil is wound by copper wire or foil, reinforced with glass fiber, epoxy resin without filler vacuum drying, degassing and dehumidification, casting, high mechanical strength, short circuit resistance and strong impact resistance.

2. The first end of the high-voltage winding and the intermediate tapping tap are embedded with copper inserts. The steel is good, easy to shift, beautiful and neat.

3. the iron core is made of high-quality grain oriented cold-rolled silicon steel sheet, 45 degree full oblique multi-step seam. The surface is covered with a resin insulating coating to resist moisture, rust and noise.

4. The elastic core is clamped between the iron core, the clamp and the coil, so that the coil is in a stable compression state to reduce noise.

5. The transformer is designed according to self-cooling. There is a longitudinal air duct inside the high (low) pressure coil wall of the whole casting. It can be equipped with forced air cooling device (cooling fan). After forced air cooling device, the output capacity can be increased. %.

6. With a thermostat, place a platinum resistor (Pt100) in the pre-buried hole at the top of the low voltage coil. In order to monitor the temperature rise of the transformer winding, the cooling fan is automatically started and stopped, and the fault alarm, over-temperature alarm and over-temperature trip function are provided to provide a reliable overload protection device for the dry-type transformer, thereby improving the safety of the dry-type transformer operation.

鐵芯：鐵芯選用進口優質冷軋硅鋼片，三階全斜接縫結構，芯柱采用F級無緯帶綁扎，鐵芯表面采用環氧樹脂包封，降低了空載損耗，空載電流和鐵皮噪聲，夾件和緊回件經特殊表面處理，使產品外觀質量有了進一步提高。

溫控系統和風冷系統：采用橫流頂吹式冷卻風機，該冷卻風機具有噪聲小，風壓高，外形美觀等特點，增強了變壓器的過載能力。溫度控制采用智能溫控儀，提高了變壓器運行安全可靠性。

保護外殼和出線母排：保護外殼對變壓器作進一步安全保護，防護等級有IP20、IP23等。外殼材料有鋁合金、冷軋鋼板，不銹鋼等供用戶選擇。低壓出線用標準母線排出線，側出線和頂出線均可，也可為用戶設計特殊出線方式。

Iron core: The iron core is made of imported high-quality cold-rolled silicon steel sheet, the third-order full-slant joint structure, the core column is bundled with F-class non-latitude belt, and the iron core surface is sealed with epoxy resin, which reduces the no-load loss and no-load current. And the iron sheet noise, the clip and the back part are specially treated to improve the appearance quality of the product.

Temperature control system and air cooling system: The cross-flow top-blown cooling fan is adopted. The cooling fan has the characteristics of low noise, high wind pressure and beautiful appearance, which enhances the overload capability of the transformer. The temperature control adopts an intelligent temperature controller to improve the safety and reliability of the transformer operation.

Protective casing and outlet busbar: The protective casing provides further protection for the transformer. The protection grades are IP20, IP23 and so on. The outer casing material is aluminum alloy, cold rolled steel plate, stainless steel, etc. for users to choose. The standard busbar discharge line for low-voltage outlets can be used for both side outlets and top outlets. Special outlets can also be designed for users.

1、GB1094.11-2007 干式電力變壓器

2、GB/T10228-2008 干式電力變壓器技術參數和要求

3、GB1094.10-2003 電力變壓器第3部分：絕緣水平、絕緣試驗和外絕緣空氣間隙

4、JB/T10008-2004 6~500KV級變壓器聲級

5、JB/T56009-1998 干式電力變壓器產品質量分等

1. GB1094.11-2007 dry power transformer

2. GB/T10228-2008 dry power transformer technical parameters and requirements

3. GB1094.10-2003 Power transformers - Part 3: Insulation level, insulation test and external insulation air gap

4. JB/T10008-2004 6~500KV class transformer sound level

5. JB/T56009-1998 dry power transformer product quality grading

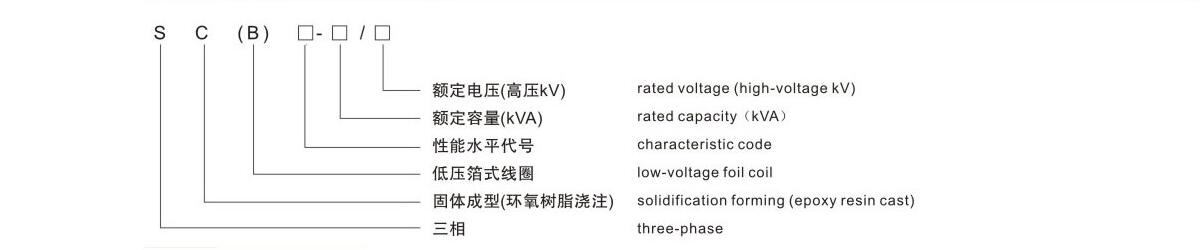

1、產品型號
2、額定容量(kVA)，三繞組變壓器高、中、低壓繞組容量比(％)
3、高壓額定電壓(kV)，調壓方式，級數及分接電壓百分比(％)
4、中壓額定電壓(kV)，調壓方式，級數及分接電壓百分比(％)
5、低壓額定電壓(kV)
6、短路阻抗(％)
7、聯結組標號
8、冷卻方式
9、特殊要求：如環境溫度、海拔高度、相數、頻率、有載分接開關、絕緣水平、環境要求。
